1. Adopting multiple patented technologies;
2. The shell is made of polymer material, with mirror treatment and beautiful appearance;
3. Activity value (multi-point), temperature calibration;
4. Testing methods: multiple;
5. 7-inch LCD touch screen operation;
6. The testing chamber is made of special materials that are acid resistant and corrosion-resistant;
7. The channel can independently test different types of samples;
8. The screen comes with a sample temperature test curve;

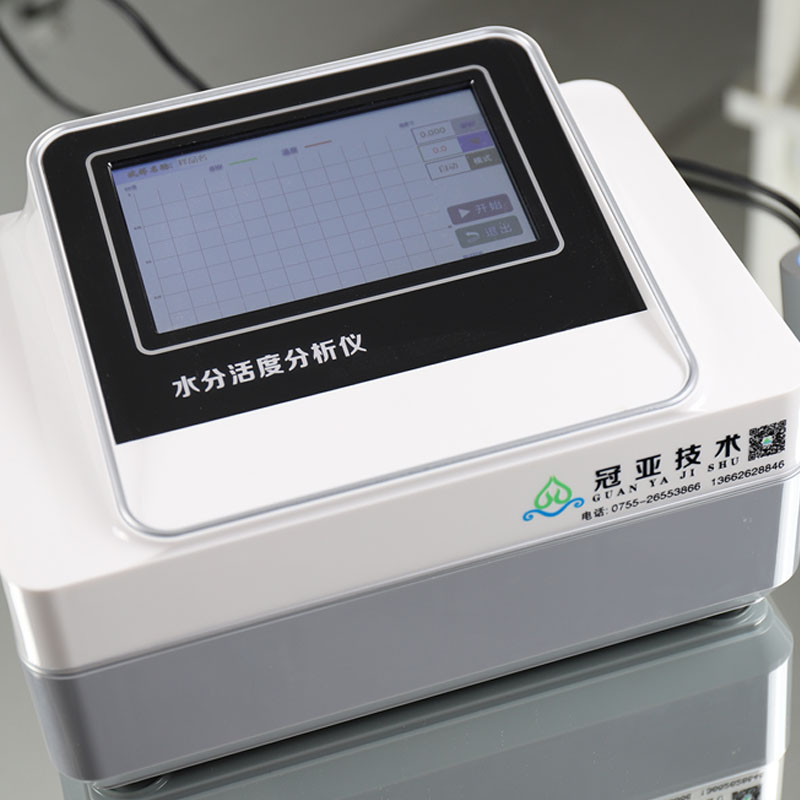

9. Analyze the process and display the real-time curve changes of the sample testing process on the screen;
10. Comes with data storage function, automatically saves data after testing;
11. Print various test data;
12. Print past saved sample test data at any time;

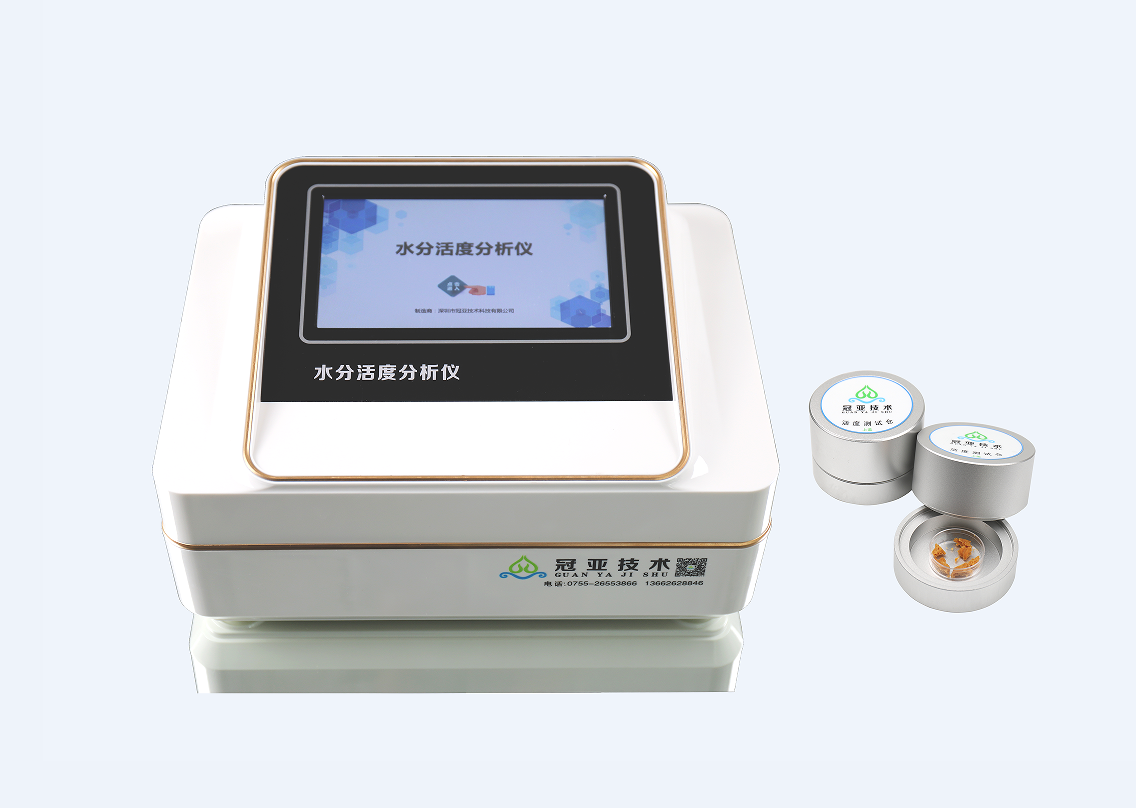

The GYM series dual channel water activity meter developed and produced by Shenzhen Guanya has functions such as secure password, sample name input, multi-point standard, and multiple testing method selection; Adopting a 7-inch high-resolution LCD screen and a full touch operation mode, the instrument displays real-time data changes in the sample, as well as real-time changes in the test curve of the sample. The entire testing process is fully automated, and after analysis is completed, the instrument screen automatically locks the final data. No need for personnel to supervise or maintain the experimental process
This product has obtained multiple patents and software copyrights for the application technology of activity meters, such as a new type of water activity meter and a system for collecting and processing water and activity measurement values. At the same time, Shenzhen Guanya participated in the drafting of the JJG (Guangdong) 052-2017 metrological verification regulations for water activity meters and the development of relevant standards such as the GBT 43859-2024 national standard for performance measurement methods of water activity meters.
| 1 | shape | Polymer Materials |
| 2 | show | 7-inch LCD |
| 3 | Activity test range | 0.000~1.000aw |
| 4 | Operation method | touch |
| 5 | Sample name input | have |
| 6 | User Interface | Can simultaneously display: water activity, temperature value, test mode, sample name; |
| 7 | Security Code | Administrator password |
| Operator password | ||
| 8 | Saturated solution calibration point | More |
| 9 | Temperature calibration | have |
| 10 | Temperature resolution | 0.1℃ |
| 11 | Test Methods | Custom/Standard |
| 12 | Printing function | have |
| 13 | Test Channel | Single/dual channel (optional) |
| 14 | Test channel expansion | Expandable (one) |
| 15 | data storage | |
| 16 | Screen brightness adjustment function | have |
| 17 | Voice broadcast function | have |
| 18 | Test data curve | Temperature curve |
| Aw curve | ||
| 19 | language | Chinese/English |
GYM series dual channel water activity meter developed by Shenzhen Guanya is widely used in the activity detection of bread, biscuits, tomato powder, dehydrated vegetables, pumpkin powder, lotus root powder, spices, ginseng extract, feed additives, cans, vegetables, Chinese medicine, Baijiu, beer, grain, cosmetics, aquatic products, fruits, fillings, cakes, puffed food, snack food, dehydrated food, dried fruits, sauces, food additives, feed, coffee beans, milk powder, tea, chafing dish base, drugs, probiotics, oligosaccharides, solid drinks, health products, condiments, sweets, tobacco and other samples. Two samples can be detected at the same time, and the two channels can be conducted independently Test.
